EAN 4718017372558
- Zócalo AM4: Compatible con procesadores AMD Ryzen de 3.ª y 2.ª Gen para maximizar la velocidad y conectividad.
- SO-DIMM.2: Tarjeta de ampliación incluida con dos ranuras M.2 y disipador térmico.
- Diseño térmico completo: Disipador activo combinado para VRM y chipset, placa trasera de aluminio con caloducto.
- Conectividad: Wi-Fi 6 (802.11ax) con MU-MIMO, Intel Gigabit Ethernet con ASUS LANGuard y GameFirst V.
- Refrigeración líquida: Zona de Refrigeración Líquida ROG, conectores para bombas de agua y radiadores.
- 5-Way Optimization: Ajustes automáticos del sistema con perfiles de overclocking y refrigeración.
- DIY sencillo: Cajetín de E/S, ASUS SafeSlot e IMPACT Control Card VI.
- Personalización: Iluminación Aura Sync RGB, conectores RGB y direccionables de 2.ª Gen.
- Audio: SupremeFX S1220 y ESS SABRE9023P para sonido de alta fidelidad, Sonic Studio III y DTS Sound Unbound.

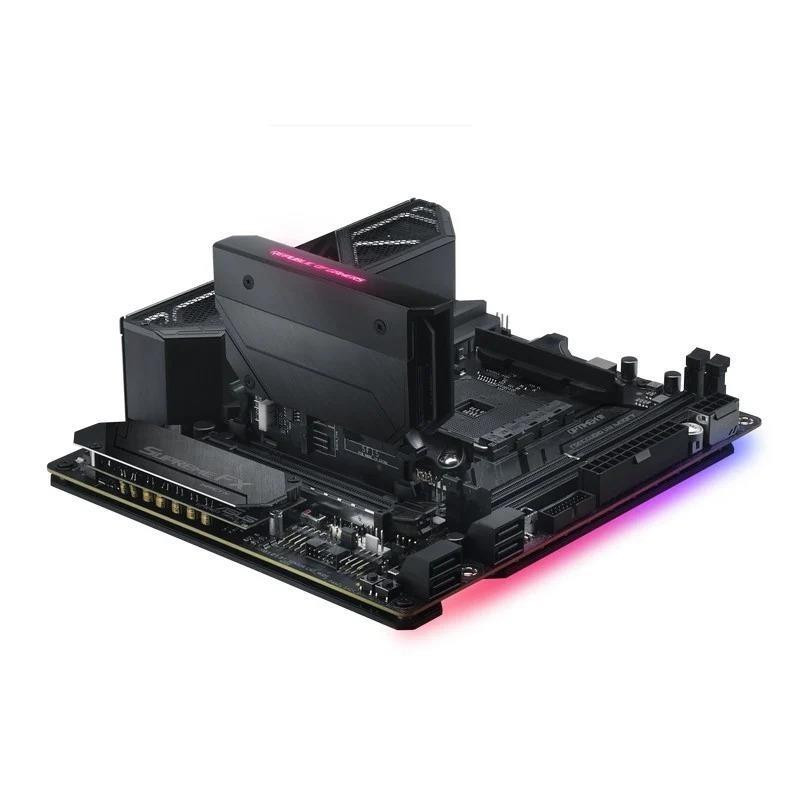

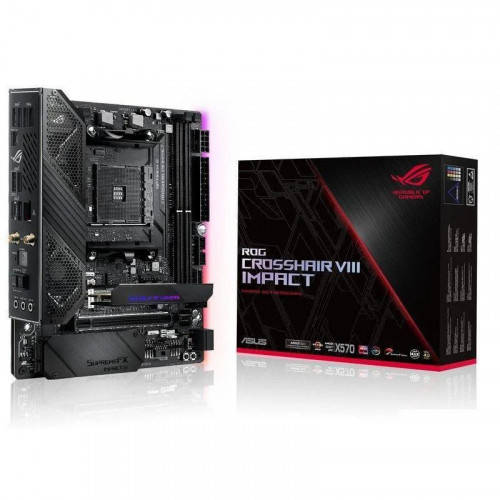

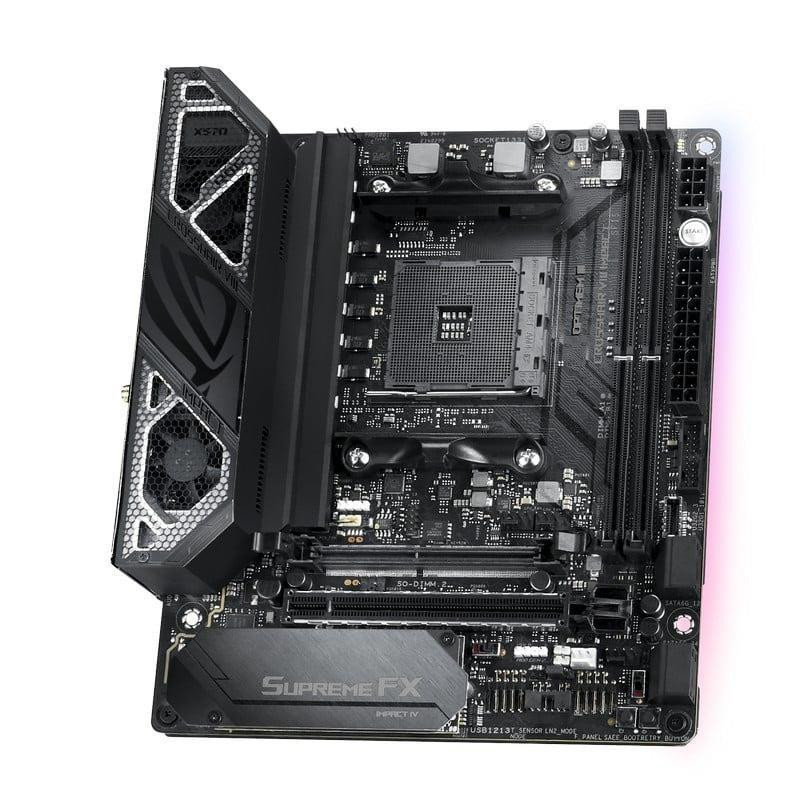

La placa base ASUS ROG Crosshair VIII Impact es una solución compacta pero potente para los entusiastas del gaming. Su formato mini-DTX no sacrifica rendimiento, ofreciendo soporte para los últimos procesadores AMD Ryzen y tecnologías de vanguardia.
Con su diseño térmico optimizado, conectividad de alta velocidad y opciones de personalización, esta placa base es ideal para construir un PC gaming de alto rendimiento en un espacio reducido.
Además, las funciones de refrigeración líquida avanzadas y el software de optimización facilitan la configuración y el mantenimiento del sistema, mientras que el sonido de alta fidelidad garantiza una experiencia de audio inmersiva.
| CPU |
| AMD AM4 Socket 3rd and 2nd AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors |
| Chipset |
| AMD X570 |
| Memoria |
| 3rd Gen AMD Ryzen? Processors 2 x DIMM, Max. 64GB, DDR4 4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
| 2nd Gen AMD Ryzen? Processors 4 x DIMM, Max. 64GB, DDR4 3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
| 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors 2 x DIMM, Max. 64GB, DDR4 3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory |
| Dual Channel Memory Architecture |
| Ranuras de expansión |
| 3rd Gen AMD Ryzen? Processors 1 x PCIe 4.0 x16 (x16 mode) |
| 2nd Gen AMD Ryzen? Processors 1 x PCIe 3.0 x16 (x16 mode) |
| 2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors 1 x PCIe 3.0 x16 (x8 mode) |
| Almacenamiento |
| 3rd Gen AMD Ryzen? Processors : 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support |
| 2nd Gen AMD Ryzen?/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors : 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) |
| AMD X570 chipset : 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support |
| 4 x SATA 6Gb/s port(s), Support Raid 0, 1, 10 |
| LAN |
| Intel I211-AT |
| ASUS LAN Guard |
| ROG GameFirst Technology |
| Red de datos inalámbrica |
| Intel Wi-Fi 6 AX200 Supports channel bandwidth: HT20/HT40/HT80/HT160 2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)withMU-MIMO supportsdualfrequency band 2.4/5GHz Up to 2.4Gbps transfer speed |
| Bluetooth |
| Bluetooth 5.0 |
| Audio |
| ROG SupremeFX 8-Channel High Definition Audio CODEC Impedance sense for front and rear headphone outputs Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking High quality 120 dB SNR stereo playback output and 113 dB SNR recording input SupremeFX Shielding Technology ESS ES9023P Supports up to 32-Bit/192kHz playback |
| Puertos USB |
| 3rd Gen AMD RyzenTM Processors : 2 x USB 3.2 Gen 2 port(s) |
| 3rd Gen AMD RyzenTM Processors : 2 x USB 3.2 Gen 1 port(s) |
| 2nd Gen AMD RyzenTM/2nd and 1st Gen AMD Ryzen? with Radeon? Vega Graphics Processors : 4 x USB 3.2 Gen 1 port(s) |
| AMD X570 chipset : 1 x USB 3.2 Gen 2 front panel connector port(s) |
| AMD X570 chipset : 4 x USB 3.2 Gen 2 port(s) |
| AMD X570 chipset : 2 x USB 3.2 Gen 1 port(s) |
| AMD X570 chipset : 2 x USB 2.0 port(s) |

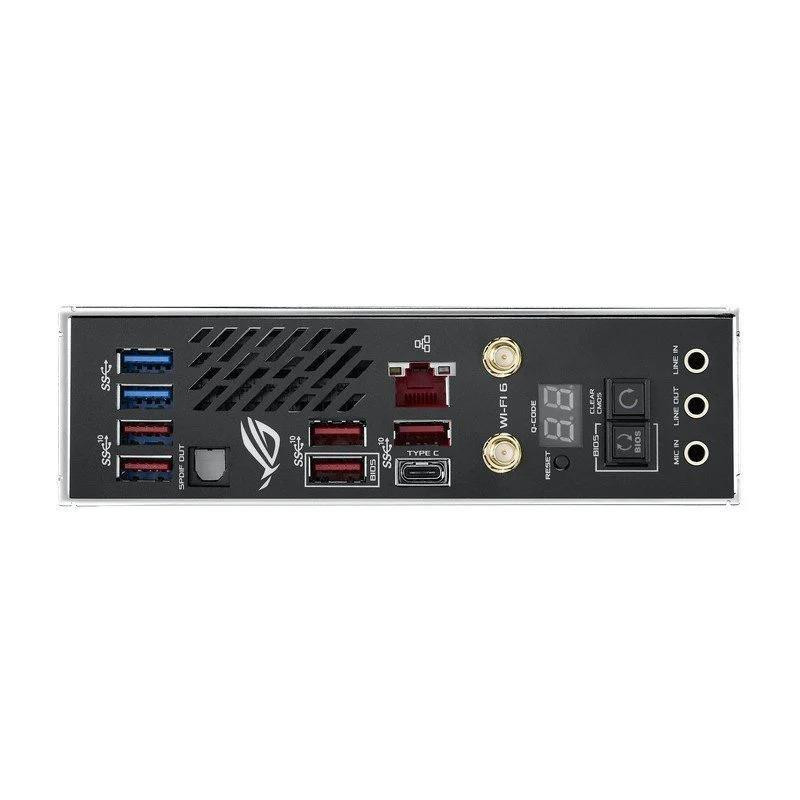

| Puertos I/O traseros |
| 1 x Optical S/PDIF out 1 x Clear CMOS button(s) 1 x USB BIOS Flashback Button(s) 1 x ASUS Wi-Fi Module 1 x Q-Code LED 1 x Reset Button 3 x LED-illuminated audio jacks 2 x USB 3.2 Gen 1 (up to 5Gbps) ports 6 x USB 3.2 Gen 2 (up to 10Gbps) ports () Anti-surge LAN (RJ45) port |
| Puertos I/O internos |
| 1 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) 2 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x W_PUMP+ connector 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Front panel audio connector(s) (AAFP) 1 x Slow Mode switch(es) 1 x Reset button(s) 1 x Node Connector(s) 1 x LN2 Mode jumper(s) 1 x Safe Boot button 1 x ReTry button 1 x System panel connector 1 x T_Sensor Connector 1 x W_IN header 1 x W_OUT header 1 x W_FLOW header 1 x Start button 2 x Radiator Fan Headers 1 x USB 3.2 Gen 2 (up to 10Gbps) connector 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
| Factor de forma |
| Mini-DTX Form Factor |
